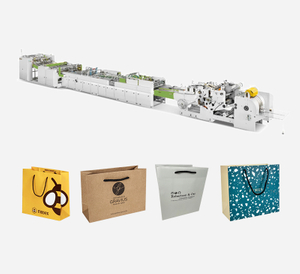

This bag making machine is designed for the automatic production of paper shopping bags with twisted handles, equipped with 4-color inline printing machine, which is an ideal choice for bag making operations looking to minimize operating costs without sacrificing quality.
Availability: | |
---|---|
Quantity: | |
Model | RKHF-330T | RKHF-450T | RKHF-450BT | RKHF-550T |
Paper cutting length | 260-530mm(without handle) | 260-530mm(without handle) | 360-800mm(without handle) | 360-800mm(without handle) |
260-430mm(without handle) | 260-430mm(without handle) | 360-700mm(without handle) | 360-700mm(without handle) | |
Paper bag width | 130-330mm(without handle) | 150-450mm(without handle) | 220-450mm(without handle) | 220-550mm(without handle) |
220-330mm(without handle) | 250-450mm(without handle) | 250-450mm(without handle) | 250-550mm(without handle) | |
Paper bag bottom width | 70-180mm | 70-180mm | 100-250mm | 100-250mm |
Paper thickness | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) |
80-160g/m2(with handle) | 80-160g/m2(with handle) | 90-160g/m2(with handle) | 90-160g/m2(with handle) | |
Twisted handle diameter | 3-4mm | 3-4mm | 3-4mm | 3-4mm |
Handle patch length | 152mm | 190mm | 190mm | 190mm |
Handle patch width | 45mm | 50mm | 50mm | 50mm |
Twisted handle height | 140-150mm | 140-150mm | 140-150mm | 140-150mm |
Paper roller width | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Power | 25KW | 25KW | 30KW | 30KW |
Machine speed | 60-150pcs/min | 60-150pcs/min | 30-150pcs/min | 30-100pcs/min |
Machine weight | 18000KG | 19500KG | 19500KG | 23000KG |
Machine dimension | L12000*W5400*H2600mm | L12000*W5600*H2600mm | L13500*W5700*H2600mm | L13500*W5700*H2600mm |
The advantages of the custom paper bags making machine
Paper bag making machines are very advantageous because they help to save a lot of time and money. With the help of these machines, you can easily create any type of paper bags within a few minutes. Moreover, these machines are very easy to use and operate. You just need to feed the paper into the machine and it will do the rest for you.
The custom paper bags making machine is a complex device composed of various parts and components. Its main structure consists of an unwinder, folding system, web guide unit, printing section, lamination unit, punching station, and winding station. This machinery enables us to produce high-quality paper bags with utmost efficiency and accuracy in minimal time. With the advancement of technology more advanced features are added to this machine which makes it even more reliable for mass production purposes.
What is the production process of custom paper bags making machine?
Custom paper bags making machine adopts unique technology, according to the cutting and sewing production process of woven bags, and according to the rising labor cost and the original backwardness of the production process, professionally designed one-stop automatic professional equipment, the products produced are standard and neat.
The production process of the woven bag automatic cutting and sewing machine fully meets the humanized service. It can completely replace the heavy manual labor in the past. The process is divided into roll-up-cutting-holding edge-bottom sewing-bag collection.
