Availability: | |
---|---|
Quantity: | |
Model | RKHF-330F | RKHF-450F | RKHF-450BF | RKHF-550F |
Paper bag cutting length (C) | 260-530mm(without handle) | 260-530mm(without handle) | 360-800mm(without handle) | 360-800mm(without handle) |
260-430mm(with handle) | 260-430mm(with handle) | 360-700mm(with handle) | 360-700mm(with handle) | |
Paper bag width (W) | 130-330mm(without handle) | 180-450mm(without handle) | 220-450mm(without handle) | 220-550mm(without handle) |
220-330mm(with handle) | 250-450mm(with handle) | 250-450mm(with handle) | 250-550mm(with handle) | |
Paper bag bottom width (H) | 70-180mm | 70-180mm | 100-250mm | 100-250mm |
Paper roll width | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Paper thickness | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 80-160g/m2(with handle) |
80-160g/m2(with handle) | 80-160g/m2(with handle) | 90-160g/m2(with handle) | 90-160g/m2(without handle) | |
Max. speed | 60-150pcs/min | 60-150pcs/min | 30-120pcs/min | 120-200pcs/min |
Flat handle width | 12mm | 12mm/15mm(choose one size) | 12mm/15mm(choose one size) | 12/15mm(choose one size) |
Handle patch length | 152mm | 190mm | 152mm | 190mm |
Handle patch width | 45mm | 50mm | 50mm | 50mm |
Handle Height(with sheet) | 140mm | 140mm | 140mm | 140mm |
Power | 25KW | 25KW | 30KW | 30KW |
Dimension | L12000*W5400*H2600mm | L12000*W5600*H2600mm | L13500*W5700*H2600mm | L13500*W5700*H2600mm |

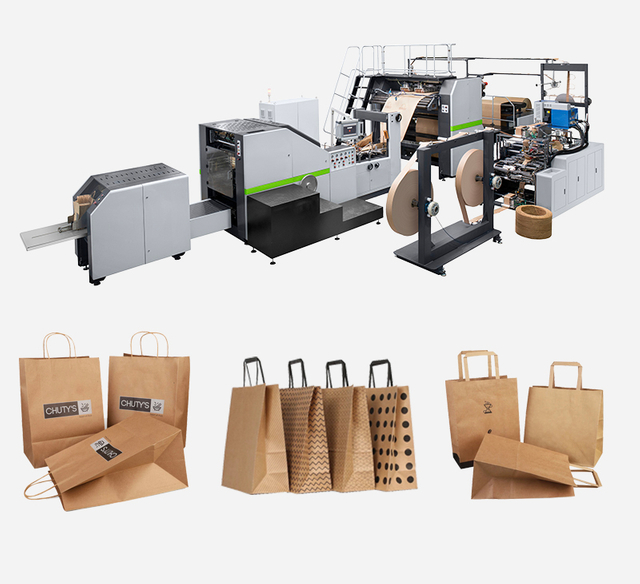

The roll kraft paper bag machine is a powerful tool for quickly and efficiently producing high-quality bags. Its ability to produce large amounts of bags in a short amount of time, as well as its energy efficiency and safety features, make it an attractive option for businesses looking to mass-produce their products. The working principle behind the roll kraft paper bag machine is simple: it utilizes rolls of preprinted paper which are then cut into sections that can be folded and glued together to create durable bags with no need for additional printing or manual labor. With these key principles in mind, businesses will have all they need to start creating beautiful custom bags in no time!
what is the working principle of the roll kraft paper bag machine?
Are you wondering how a roll kraft paper bag machine works? The principle behind this form of automation is relatively simple but is incredibly effective. This type of machine has been used in the packaging industry for decades and is now becoming more prevalent in other industries such as retail, food service, and even medical supplies.
The working principle of the roll kraft paper bag machine
The working principle of the roll kraft paper bag machine is that a roll of colored paper is fed into the machine, and the machine then prints the desired design onto the paper. The paper is then cut to size and shape, and the bags are made.
Model | RKHF-330F | RKHF-450F | RKHF-450BF | RKHF-550F |
Paper bag cutting length (C) | 260-530mm(without handle) | 260-530mm(without handle) | 360-800mm(without handle) | 360-800mm(without handle) |
260-430mm(with handle) | 260-430mm(with handle) | 360-700mm(with handle) | 360-700mm(with handle) | |
Paper bag width (W) | 130-330mm(without handle) | 180-450mm(without handle) | 220-450mm(without handle) | 220-550mm(without handle) |
220-330mm(with handle) | 250-450mm(with handle) | 250-450mm(with handle) | 250-550mm(with handle) | |
Paper bag bottom width (H) | 70-180mm | 70-180mm | 100-250mm | 100-250mm |
Paper roll width | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Paper thickness | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 80-160g/m2(with handle) |
80-160g/m2(with handle) | 80-160g/m2(with handle) | 90-160g/m2(with handle) | 90-160g/m2(without handle) | |
Max. speed | 60-150pcs/min | 60-150pcs/min | 30-120pcs/min | 120-200pcs/min |
Flat handle width | 12mm | 12mm/15mm(choose one size) | 12mm/15mm(choose one size) | 12/15mm(choose one size) |
Handle patch length | 152mm | 190mm | 152mm | 190mm |
Handle patch width | 45mm | 50mm | 50mm | 50mm |
Handle Height(with sheet) | 140mm | 140mm | 140mm | 140mm |
Power | 25KW | 25KW | 30KW | 30KW |
Dimension | L12000*W5400*H2600mm | L12000*W5600*H2600mm | L13500*W5700*H2600mm | L13500*W5700*H2600mm |
The roll kraft paper bag machine is a powerful tool for quickly and efficiently producing high-quality bags. Its ability to produce large amounts of bags in a short amount of time, as well as its energy efficiency and safety features, make it an attractive option for businesses looking to mass-produce their products. The working principle behind the roll kraft paper bag machine is simple: it utilizes rolls of preprinted paper which are then cut into sections that can be folded and glued together to create durable bags with no need for additional printing or manual labor. With these key principles in mind, businesses will have all they need to start creating beautiful custom bags in no time!
what is the working principle of the roll kraft paper bag machine?
Are you wondering how a roll kraft paper bag machine works? The principle behind this form of automation is relatively simple but is incredibly effective. This type of machine has been used in the packaging industry for decades and is now becoming more prevalent in other industries such as retail, food service, and even medical supplies.
The working principle of the roll kraft paper bag machine
The working principle of the roll kraft paper bag machine is that a roll of colored paper is fed into the machine, and the machine then prints the desired design onto the paper. The paper is then cut to size and shape, and the bags are made.
