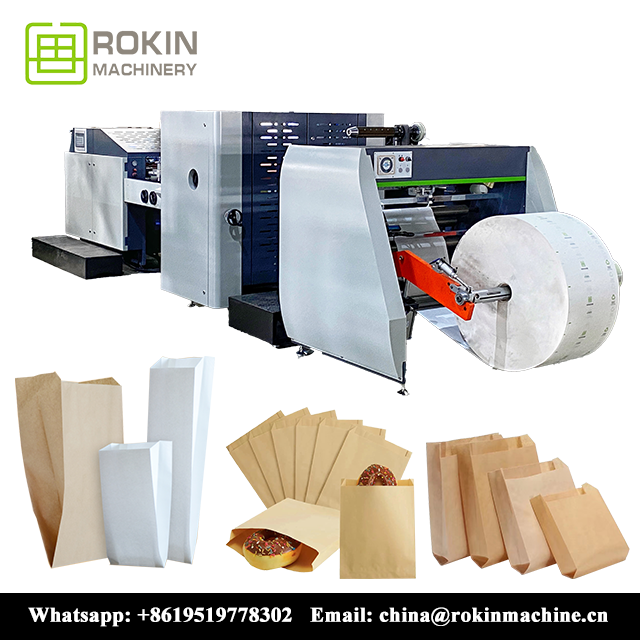

RKJD-250 V bottom paper bag machine

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.
Availability:
Quantity:






Model

RKJD-250

Paper bag production speed

350-420pcs/min

Max. Machine speed

75m/min

Paper bag cutting length (C)

110-450mm

Paper bag width (W)

70-250mm

Side insert width(G)

20-120mm

Bag mouth height

15/20mm

Paper thickness

35-80g/m2

Paper roll width

100-760mm

Power

10KW

Weight

4500 KGS

Dimension

L6800*W1600*H1600mm





Rolling inflatable shaft with Hydraulic automatic feeding system

Magnetic powder controller

Correction system drive by servo motor

The side correction adopts ultrasonic sensor

Hydraulic system for sheet roller changing

Automatic gluing system, adjust the volume of glue and location directly

An integrated tube forming adjustment structure

Germany brand SICK automatic color mark

Japan Yaskawa servo motor driving roller

Automatic lubrication system

Automatic collecting system



Previous:
Next:

FAQ

Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, v bottom paper bag machine, square bottom paper bag machine and related auxiliary equipment, etc. We have many professional engineers who have more than twenty years experience in the packaging equipment manufacturing industry.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.
  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.
  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
  • Q What information should I let you know if I want to get a quotation?

    A First, Paper raw material: Reel paper or Sheet Paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
