You are here: Home » Full Automatic Paper Bag Machine

Fully Automatic Paper Bag Machine

A fully automatic paper bag machine is a highly efficient piece of equipment that is designed to produce large quantities of high-quality paper bags with minimal human intervention. This machine typically incorporates advanced technologies such as programmable logic controllers (PLCs), servo motors, and touch-screen displays to automate the entire bag-making process. With the use of this machine, operators can easily set parameters such as bag size, shape, and paper thickness, after which the machine will automatically feed, cut, fold, glue, and output the finished bags. In addition to improving production efficiency and reducing labor costs, fully automatic paper bag machines also contribute to environmental sustainability by reducing waste, air pollution, and energy consumption.

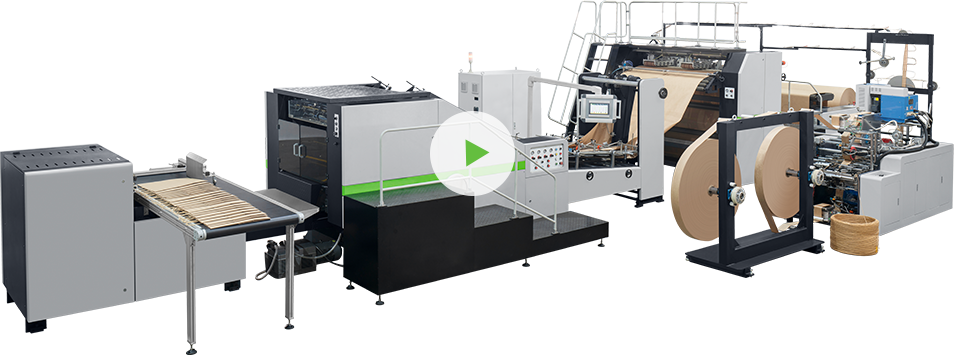

Fully Automatic Paper Bag Machine

This paper bag machine series is perfect for making various round handle-style bags, such as food bags and shopping bags. It's an ideal choice for mid and large-size paper bag production due to its speed of use. The side gluing, roll folding, cutting, bottom folding, bottom gluing, and forming steps along with the bag outputting process are all combined into one line which makes it easy to manage and massively cost-efficient when it comes to labor. Additionally, a fitted photoelectric detecting feature guarantees cutting accuracy while a Yaskawa PLC system allows for quick yet reliable performance. Thanks to the special bag collection platform and counting functionality, the efficiency of packing paper bags is dramatically increased. This machine is perfect for the food and clothing industries due to its capacity of producing many sizes of paper bags at an incredibly fast rate.

Paper Bag Samples

One Fully Automatic Paper Bag Making Machine With Multiple Options

2 Colors paper bag printer

2 Colors Inline Printer:

The flexo printing machine can be used either offline or online, providing you with a variety of printing methods and flexibility.
paper bag printing machine

4 Colors Inline Printer

A variety of printing methods and flexibility are provided here, so you can quickly and easily print images, patterns, and other designs on your finished product.

paper bag handle making machine

Twisted Handle making machine

A handle-making machine can be used to make paper bags with twisted handles.

paper bag handle making machine

Flat Handle making machine

You can make paper bags with flat handles using a handle making machine.

Fully Automatic Paper Bag Machine

  • Video


  • Twisted Handle

    paper bag size

    Model RKHF-330T RKHF-450T RKHF-450BT RKHF-550T
    Paper bag cutting length (C) 260-530mm(without handle)
    260-430mm(with handle)    		 260-530mm(without handle)
    260-430mm(with handle)    		 350-810mm(without handle)
    350-710mm(with handle)    		 350-810mm(without handle)
    350-710mm(with handle)
    Paper bag width (W) 130-330mm(without handle)
    180-330mm(with handle)    		 180-450mm 220-450mm 220-550mm
    Paper bag bottom width (H) 70-180mm 90-180mm 100-250mm 100-250mm
    Paper roll width 430-1050mm 570-1290mm 670-1430mm 670-1630mm
    Paper thickness 60-160g/m2(without handle). 80-160g/m2(with handle)
    Max. speed 120-200pcs/min 120-200pcs/min 120-200pcs/min 120-200pcs/min
    Twisted handle diameter 3-4mm 3-4mm 3-4mm Dia 3-4mm
    Handle patch length 152mm 190mm 190mm 190mm
    Handle patch width 40-50mm 40-51mm 40-52mm 40-53mm
    Handle Height(with sheet) 130-150mm 130-151mm 130-152mm 130-153mm
    Power 25KW 25KW 30KW 30KW
    Dimension L12500*W4300*H3000mm L12500*W4400*H3000mm L14300*W4800*H3000mm L14300*W4800*H3000mm
  • Flat Handle

    paper bag

    Model RKHF-330F RKHF-450F RKHF-450BF RKHF-550F
    Paper bag cutting length (C) 260-530mm(without handle)
    260-430mm(with handle)    		 260-530mm(without handle)
    260-430mm(with handle)    		 350-810mm(without handle)
    350-710mm(with handle)    		 350-810mm(without handle)
    350-710mm(with handle)
    Paper bag width (W) 130-330mm(without handle)
    180-330mm(with handle)    		 180-450mm 220-450mm 220-550mm
    Paper bag bottom width (H) 70-180mm 90-180mm 100-250mm 100-250mm
    Paper roll width 400-1050mm 570-1290mm 670-1430mm 670-1630mm
    Paper thickness 60-160g/m2(without handle)
    80-160g/m2(with handle)    		 60-160g/m2(without handle)
    80-160g/m2(with handle)    		 60-160g/m2(without handle)
    80-160g/m2(with handle)    		 80-160g/m2(with handle)
    60-160g/m2(without handle)
    Max. speed 120-200pcs/min 120-200pcs/min 120-200pcs/min 120-200pcs/min
    Flat handle width 12mm/15mm（choose one size） 12mm/15mm（choose one size） 12mm/15mm（choose one size） 12/15mm（choose one size）
    Handle patch length 152mm 152mm 152mm 190mm
    Handle patch width 40-50mm 40-50mm 40-50mm 40-53mm
    Handle Height(with sheet) 140mm 140mm 140mm 140mm
    Power 25KW 25KW 30KW 30KW
    Dimension L12500*W4300*H3000mm L12500*W4400*H3000mm L14300*W4800*H3000mm L14300*W4800*H3000mm

  • Equipment Details

    paper bag factory
  • Features
    Hydraulic automatic feeding system for rolling inflatable shafts
    Control of magnetic powder
    The correction system is driven by a servo motor
    An ultrasonic sensor is used for side correction
    Hydraulic system for sheet roller changing
    Automatic gluing system, adjust glue volume and location directly
    An integrated tube forming adjustment structure
    Germany brand SICK automatic color mark
    Japan Yaskawa servo motor driving roller
    Automatic lubrication system
    Automatic collecting system
  • Partner

    paper bag manufacturer

Related Machines

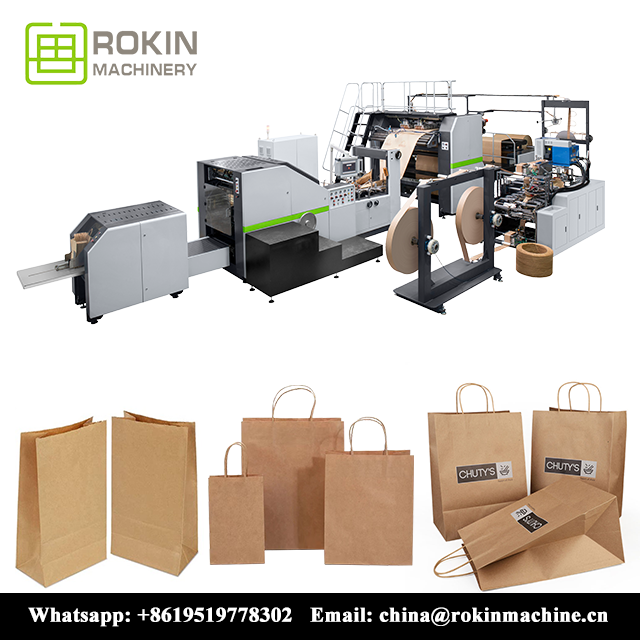

Full automatic paper bag machine with twisted handle
RKHF-450BT Full automatic paper bag machine with twisted handle

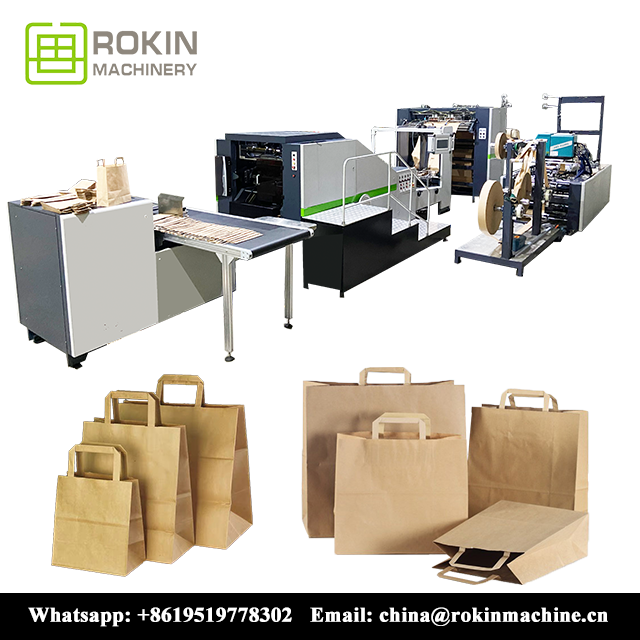

Full automatic paper bag machine with flat handle
RKHF-330F Full automatic paper bag machine with flat handle

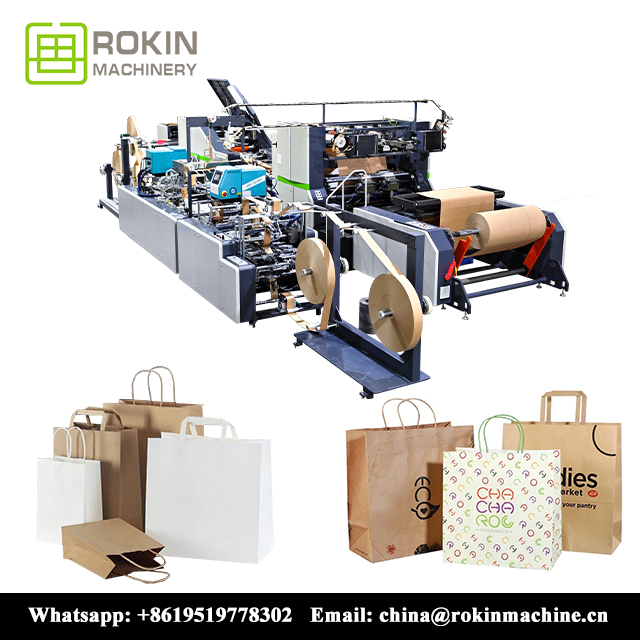

Full automatic paper bag machine with twised & flat handle
RKHF-330TF Full automatic paper bag machine with twised & flat handle
Square bottom paper bag machine
RKFD-330 Square bottom paper bag machine
Square bottom paper bag machine
RKFD-190 Square bottom paper bag machine
V bottom paper bag machine
RKJD-350 V bottom paper bag machine
V bottom paper bag machine
RKJD-350 V bottom paper bag machine

FAQ

In addition to its automatic paper bag machines, Rokin Machinery CO. Ltd. manufactures V-bottom paper bag machines, case-making machines, cardboard slitting machines, and other machines. Several of our engineers are well-trained and experienced. We take talents as the foundation, technology as the carrier, uphold the spirit of craftsmanship and strive to be the pioneers of technological innovation. If you have any questions, please let us know.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.

  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.

  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.

  • Q What information should I let you know if I want to get a quotation?

    A First, Paper raw material: Reel paper or Sheet Paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
