This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Technical Parameter
Model | RKP4-1000 | RKP4-1200 | RKP4-1400 |
Colors | 4 colors | 4 colors | 4 colors |
Max. Printing material width | 1000mm | 1200mm | 1400mm |
Max. Printing width | 960mm | 1160mm | 1360mm |
Printing length range | 230-1000mm | 230-1000mm | 230-1000mm |
Max. Printing speed | 5-100m∕min | 5-100m∕min | 5-100m∕min |
Register precision | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm |
Thickness of plate | 2.28mm+0.38mm（can be customized) | 2.28mm+0.38mm（can be customized) | 2.28mm+0.38mm（can be customized) |
Max. Rewinding diameter | 1300mm | 1300mm | 1300mm |
Max. Unwinding diameter | 1300mm | 1300mm | 1300mm |
Power supply | AC 380V, 50Hz | AC 380V, 50Hz | AC 380V, 50Hz |
Rated power | 21Kw | 21kw | 24 kw |
Machine dimension | 8200X2100X2800mm | 8200X2300X2800mm | 8200X2500X2800mm |
Machine weight | 5400Kg | 5600kg | 5800 kg |

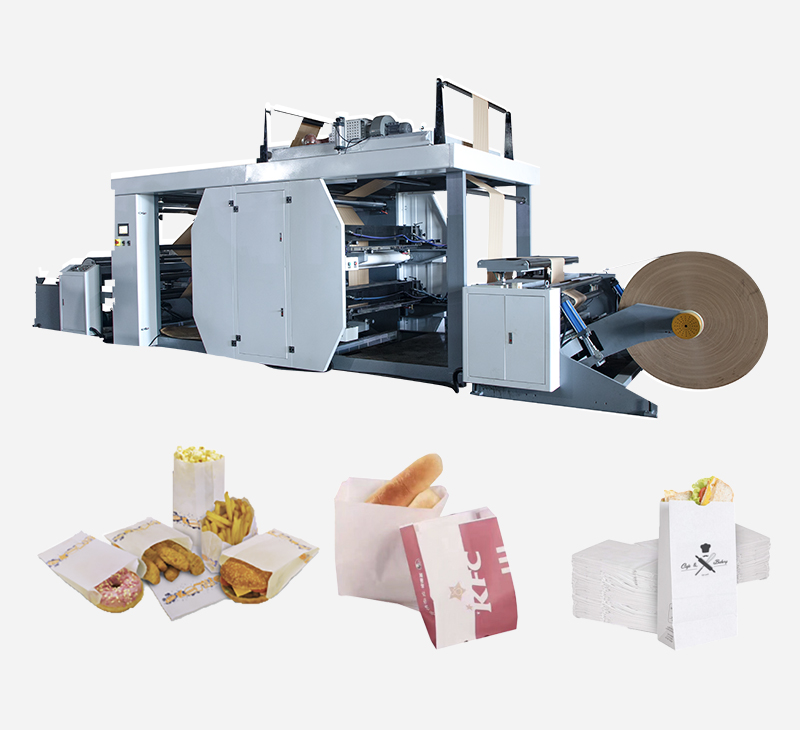

Finished product samples
