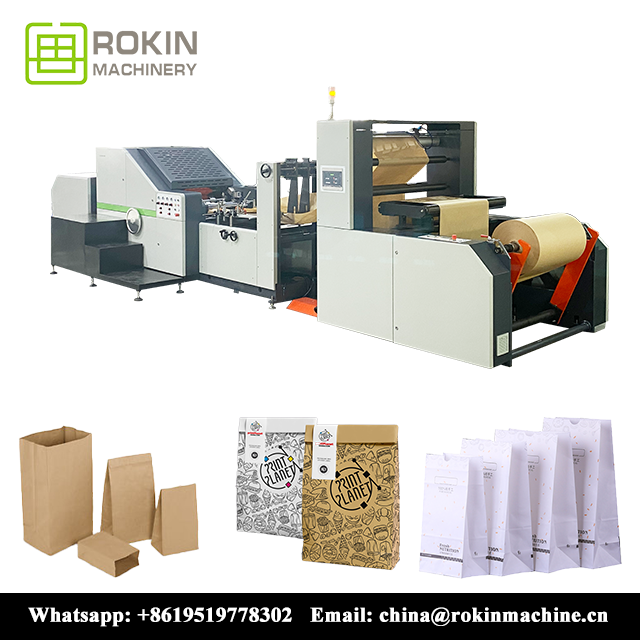

Square Bottom Paper Bag Machine

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.

Square Bottom Paper Bag Machine

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.

Sample

One Square Bottom Paper Bag Making Machine With Multiple Options

Inline Printer:

This section provides you with a variety of printing methods and flexibility allowing you to quickly and easily print images, patterns, and other designs on your finished product. This flexo printing machine can be off line or on line.

D-Cutting:

Die-cutting is also known as D-cutting. It is a new feature that is used to make D-shaped holders in paper bags. They can be customized according to your own requirements.

Window Unit:

A thin film strip is pulled from a supply reel and wound onto a take-up reel by the machine.

Handle Making Machine:

With a handle making machine, you can make paper bag with twisted or flat handle.

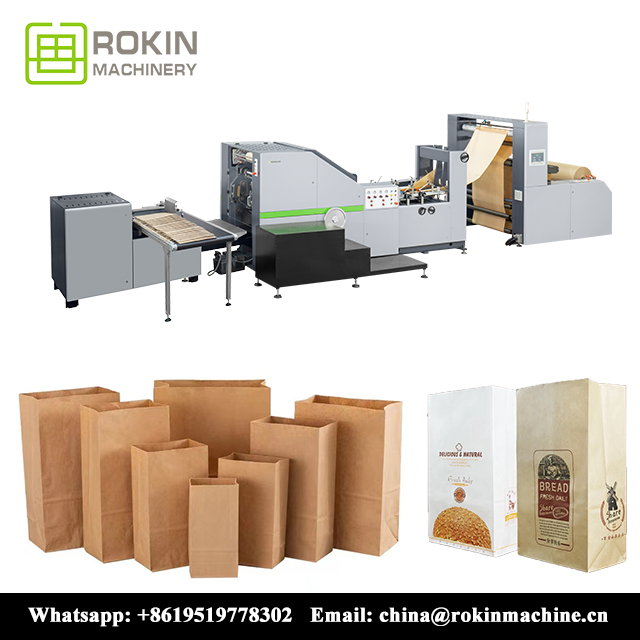

Square Bottom Paper Bag Machine

  •
    square bottom paper bag
    Model RKFD-190 RKFD-330 RKFD-450 RKFD-450B RKFD-550
    Paper bag cutting length (C) 220-430mm 260-530mm 260-530mm 350-810mm 350-810mm
    Paper bag width (W) 80-190mm 130-330mm 180-450mm 220-450mm 220-550mm
    Paper bag bottom width (H) 50-100mm 70-180mm 90-180mm 100-250mm 100-250mm
    Paper roll width 290-610mm 400-1050mm 570-1290mm 670-1430mm 670-1630mm
    Paper thickness 45-120g/m2 60-160g/m2 60-160g/m2 80-160g/m2 80-160g/m2
    Max. speed 150-200pcs/min 150-200pcs/min 150-180pcs/min 150-180pcs/min 120-180pcs/min
    Power 8KW 8KW 8KW 15KW 15KW
    Dimension L9200*W1600*H1800mm L10000*W2100*H2100mm L10000*W3000*H2100mm L11000*W3200*H2400mm L11000*W3800*H2400mm
    Weight 5000 KGS 8500 KGS 10000 KGS 12000 KGS 14000 KGS
  • suqare bottom paper bag making machine
  •
    Rolling inflatable shaft with Hydraulic automatic feeding system
    Magnetic powder controller
    Correction system drive by servo motor
    The side correction adopts ultrasonic sensor
    Hydraulic system for sheet roller changing
    Automatic gluing system, adjust the volume of glue and location directly
    An integrated tube forming adjustment structure
    Germany brand SICK automatic color mark
    Japan Yaskawa servo motor driving roller
    Automatic lubrication system
    Automatic collecting system
  •


Related Machines

FAQ

Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, v bottom paper bag machine, square bottom paper bag machine and related auxiliary equipment, etc. We have many professional engineers who have more than twenty years experience in the packaging equipment manufacturing industry.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.
  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.
  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
  • Q What information should I let you know if I want to get a quotation?

    A First, Paper raw material: Reel paper or Sheet Paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
