Function Of The Paper Bag Machine

Automatic paper bag machine series is applied to produce many types of paper bags with handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This paper bag manufacturing machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries,as food paper bag machine or brown paper bag machine.

Paper Bag Machine Series

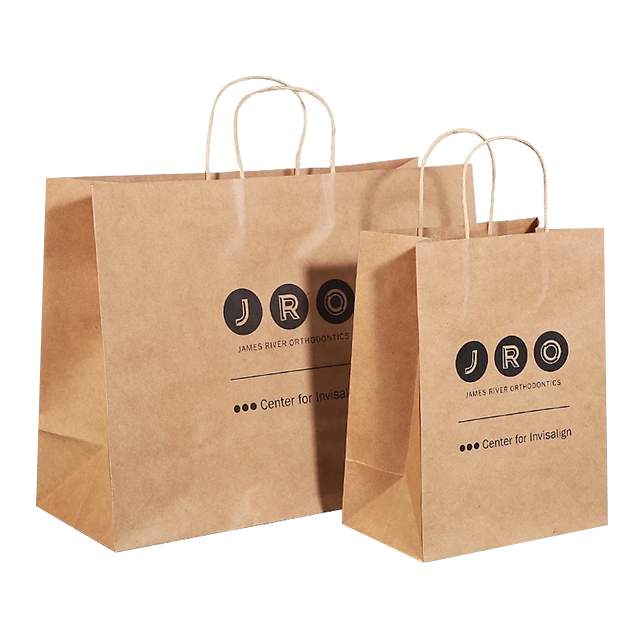

Full Automatic Paper Bag Machine With Twisted Handle Inline

This paper bag machine is designed for the production of shopping paper bags with handle, it use the paper round ropes and reel paper to produce the twisted handle in the machine automatic, then deliver by the conveyor belt to paste in the primary color or printed paper roll, then the paper with hand glue through side gluing, forming, cutting off, open bottom, bottom gluing, closing bottom and conveying out of the bag, the whole process is completed simultaneously at one time. Therefore, it truly shows this machine is full automation production can effectively save labor costs.

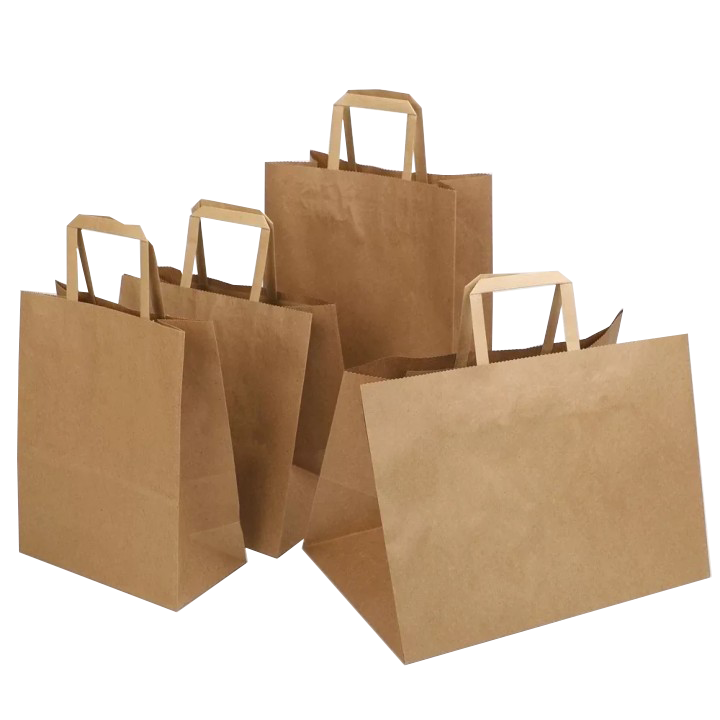

Full Automatic Paper Bag Machine With Flat Handle Inline

This machine is specially designed to make paper shopping bags with flat handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors to ensure the high precision and stability, simple maintenance and high efficiency. Twisted round rope and flat handle can be switched very easily, one machine for double function. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Features Of Rokin Paper Bag Machine

Advantages：

1.Control bag length through the human-machine touch screen interface
2. PLC programmable servo motor control system
3. Equipped with an accurate photocell system for printed mark tracking
4. Color mark error stopping system
5. Automatic oil lubrication system
6. Automatic counting system
7. Automatic collection system
8. Customizable

9. Easy to operate

10. Easy to operate

11.Automatic handle making
12.Heavy chassis&thick frame

13.Stable operation

14.Wwinview touch screen
15.Hydraulic feeding

16.Automatic gluing system
17.Yaskawa servo motor control system
18.Sick printing tracking electric eye
19.Web guide control
20.Automatic lubricator

How Does Rokin Paper Bag Making Machine Work?

ROKIN Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on.How Does paper bag machine work?

Step1
Step2
Step3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9

Step1

Handle making
Making the handle.
Step2

Roll feeding
The feeding roller is controled by air shaft, easy to lock the paper roller by air.
Step3

Pasting handle
Pasting the handle on the paper roller.
Step 4

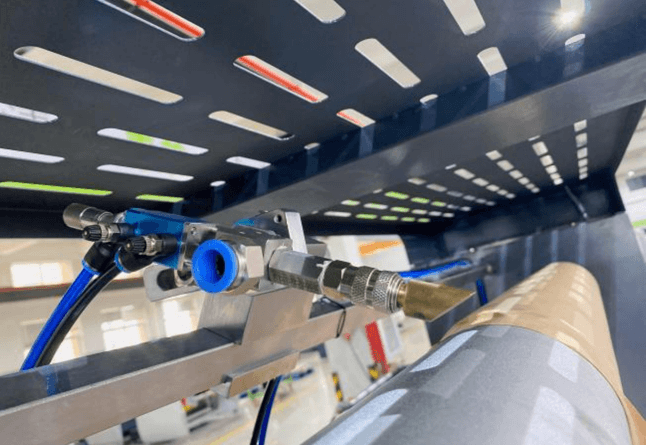

Side gluing
Automatic gluing system, adjust the volume of glue and location directly. With Energy-saving pressure rubber barrel, saving the cost.
Step 5

Tube forming
The paper tube forming adopts an integrated tube forming adjustment structure.
Step 6

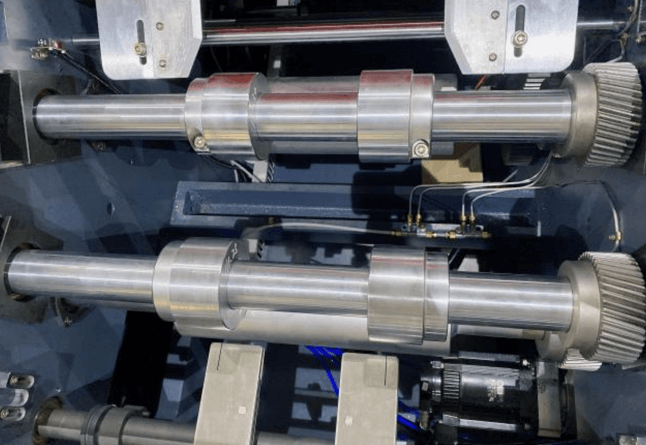

Driving roller
Two driving roller, more power and stable，adopts Japan Yaskawa servo motor to control.
Step 7

Paper cutting

High-speed uniform rotating cutter through a serrated knife or a flat knife, drive by Japan Yaskawa servo motor.
Step 8

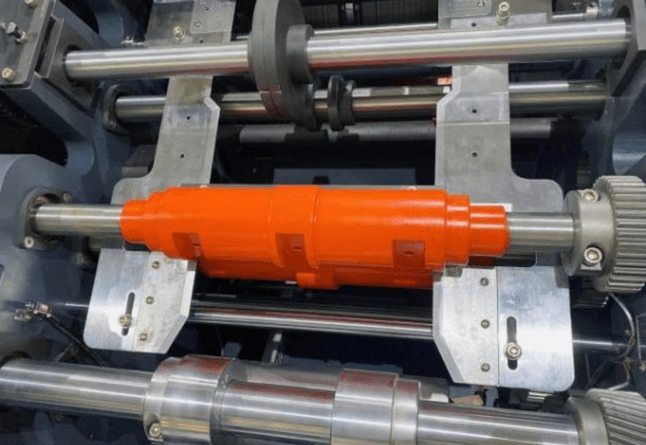

Bag pressing
To make sure big size bag with good pressing and forming quality.
Step 9

Bag collecting
Automatic collect the finished paper bag on online line, and you can set the number of one line on the touch screen.

Manufacturing Process

ROKIN full automatic paper bag machine can produce with handles, such as food paper bag, shopping bags and so on.This paper bag machine includes 10 steps to produce paper bag with handle.

Paper Bags Solutions from Rokin Machines 3 in 1

Full Automatic Paper Bag Machine With Twisted Handle Inline

Full Automatic Paper Bag Machine With Flat Handle Inline

Paper Bag Machine Precautions

Parameters
Power	3 phases, 380V±10%, 50 Hz
Compressed Air	pressure: 0.6 MPa oil and humidity: ≯8 mg/m3
Installation Height	Max. altitude: 1500 m
Ambient Requirement	relative moisture: Max. 65% when 40 ℃ temperature range: 10~40 ℃
