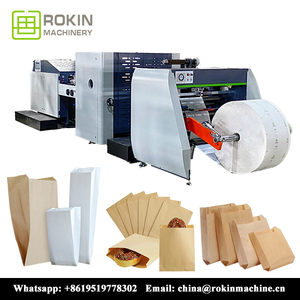

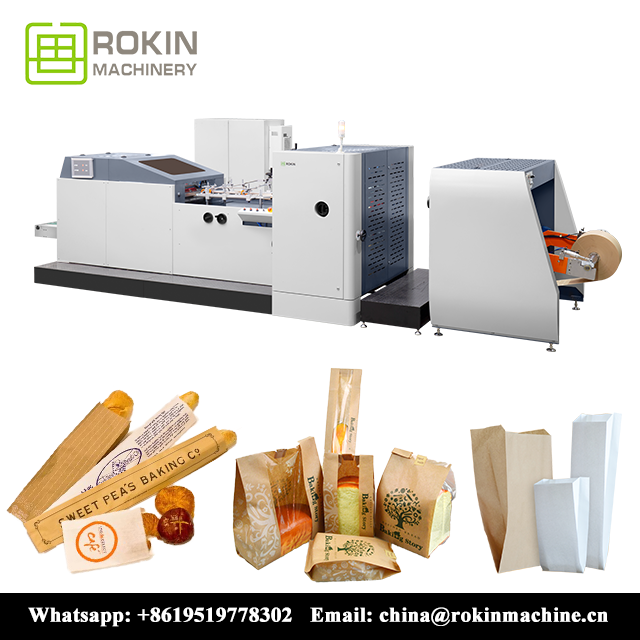

RKJD-350 V bottom paper bag machine

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.
Availability:
Quantity:





Model

RKJD-350

Paper bag production speed

600-700pcs/min

Max. Machine speed

120m/min

Paper bag cutting length (C)

155-715mm

Paper bag width (W)

70-350mm

Side insert width(G)

20-120mm

Bag mouth height

15/20mm

Paper thickness

35-80g/m2

Paper roll width

100-980mm

Power

20KW

Weight

6500 KGS

Dimension

L7500*W2300*H1800mm



尖底细节1


Rolling inflatable shaft with Hydraulic automatic feeding system

Magnetic powder controller

Correction system drive by servo motor

The side correction adopts ultrasonic sensor

Hydraulic system for sheet roller changing

Automatic gluing system, adjust the volume of glue and location directly

An integrated tube forming adjustment structure

Germany brand SICK automatic color mark

Japan Yaskawa servo motor driving roller

Automatic lubrication system

Automatic collecting system
