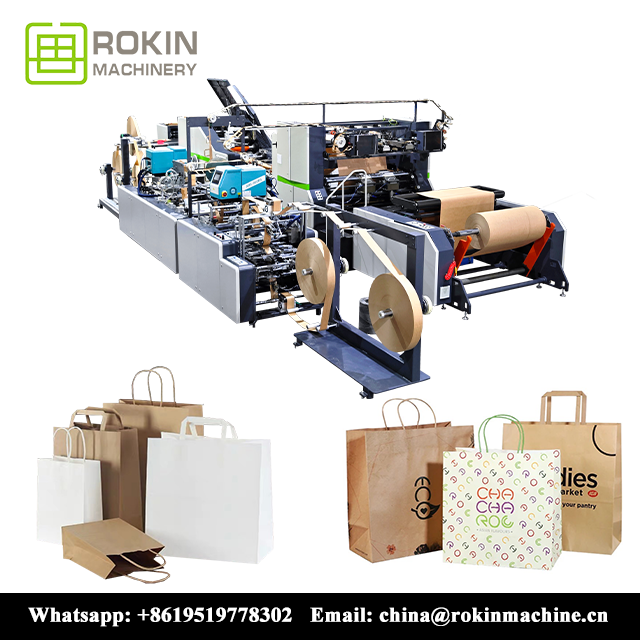

RKHF-450BTF Full automatic paper bag machine with twisted & flat handle

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


0



The RKHF-450BTF Full automatic paper bag machine with twisted & flat handle is a state-of-the-art piece of equipment that offers incredible versatility and efficiency. With its full automation capabilities, this machine can produce up to 140 bags per minute, making it an ideal choice for businesses looking to streamline their production process.
One of the standout features of this machine is its ability to create both twisted and flat handles on your paper bags. This allows you to offer a wider variety of bag options to your customers without having to purchase multiple machines or make manual adjustments.
In addition, the RKHF-450BTF is incredibly user-friendly, with simple controls that allow operators at any level of experience to operate it safely and effectively. And thanks to its compact design, it won't take up too much space in your facility.
If you're looking for a reliable and versatile option for producing high-quality paper bags with ease, the RKHF-450BTF Full automatic paper bag machine with twisted & flat handle is definitely worth considering.




Model

RKHF-450BTF

Paper bag cutting length (C)

350-810mm(without handle)

350-710mm(with handle)

Paper bag width (W)

220-450mm

Paper bag bottom width (H)

100-250mm

Paper roll width

670-1430mm

Paper thickness

60-160g/m2(without handle)

80-160g/m2(with handle)

Max. speed

120-200pcs/min

Twisted rope handle

Handle rope height

90-100mm

Handle rope diameter

Dia3-4mm

Handle sheet length

190mm

Handle sheet width

40-52mm

Flat handle

Flat handle width

12/15mm (choose one size)

Flat Handle height

90-100mm

Flat handle distance

76mm

Handle sheet length

190mm

Handle sheet width

40-52mm

Power

38KW

Dimension

23000 KGS

Weight

L16000*W5700*H3000mm





Rolling inflatable shaft with Hydraulic automatic feeding system

Magnetic powder controller

Correction system drive by servo motor

The side correction adopts ultrasonic sensor

Hydraulic system for sheet roller changing

Automatic gluing system, adjust the volume of glue and location directly

An integrated tube forming adjustment structure

Germany brand SICK automatic color mark

Japan Yaskawa servo motor driving roller

Automatic lubrication system

Automatic collecting system
