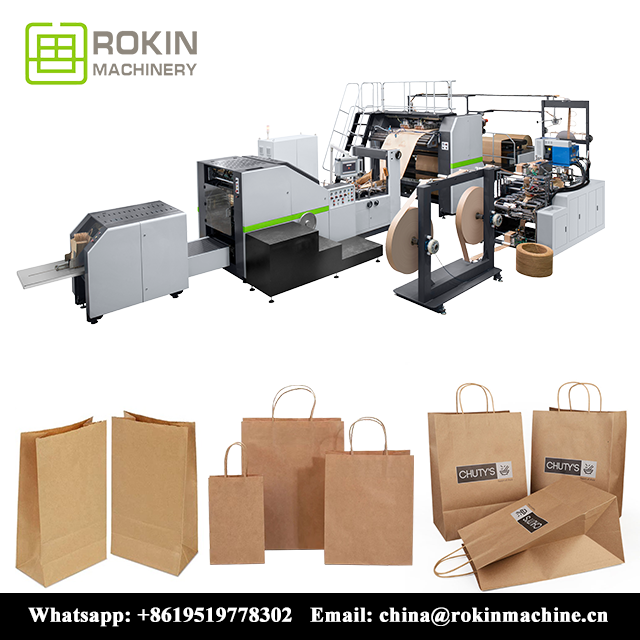

RKHF-450T Automatic Kraft Food Paper Bag Machine with Twisted Handle

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RKHF-450T


0

The Automatic Kraft Food Paper Bag Machine with Twisted Handle, offered by Rokin Machine, is a versatile and efficient packaging solution for the food and clothing industries. This machine is designed to produce various types of paper bags with round handles, including food paper bags and shopping bags. It is an ideal piece of equipment for producing mid-size and big-size paper bags quickly and easily.


The machine is equipped with advanced features that ensure high efficiency, stability, and precision. Its side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, and bag output functions are all integrated into one streamlined process. Additionally, the machine includes a photoelectric detector that can correct cutting length and ensure cutting precision. The Yaskawa PLC system ensures that the machine can perform quickly and stably, while the special bags collection platform and counting function improve the packing efficiency of paper bags.


The Automatic Kraft Food Paper Bag Machine with Twisted Handle is highly customizable, with the ability to produce paper bags of varying sizes at a high speed. The twisted handle feature adds an attractive touch to the bags while providing additional strength to support heavier items. With the ability to customize both the size and design of your bags, you can create packaging that perfectly fits your brand's unique style.


One of the key features of this machine is its automatic operation, which means that you no longer need to rely on manual labor for your bag production needs. This not only saves time and money but also ensures consistency in each and every bag produced.


The twisted handle feature adds an attractive touch to the bags while providing additional strength to support heavier items. And with the ability to customize both the size and design of your bags, you can create packaging that perfectly fits your brand's unique style.


If you're looking for a way to improve your packaging game while saving time and money, investing in a fully automatic paper bag machine with a twisted handle could be just what you need!



Model

RKHF-450T

Paper bag cutting length (C)

260-530mm(without handle)

260-430mm(with handle)

Paper bag width (W)

180-450mm

Paper bag bottom width (H)

90-180mm

Paper roll width

570-1290mm

Paper thickness

60-160g/m2(without handle)

80-160g/m2(with handle)

Max. speed

120-200pcs/min

Twisted handle diameter

3-4mm

Handle patch length

190mm

Handle patch width

40-51mm

Handle Height(with sheet)

130-151mm

Power

25KW

Dimension

L12500*W4400*H3000mm

Weight

18500 KGS





Rolling inflatable shaft with Hydraulic automatic feeding system

Magnetic powder controller

Correction system drive by servo motor

The side correction adopts ultrasonic sensor

Hydraulic system for sheet roller changing

Automatic gluing system, adjust the volume of glue and location directly

An integrated tube forming adjustment structure

Germany brand SICK automatic color mark

Japan Yaskawa servo motor driving roller

Automatic lubrication system

Automatic collecting system
