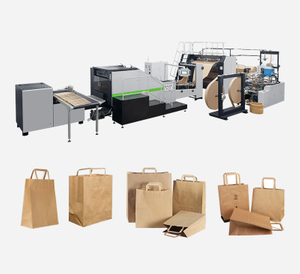

Retail Reel Feeding Paper Bag Machine

This bag making machine is designed for the automatic production of paper shopping bags with twisted handles, equipped with 4-color inline printing machine, which is an ideal choice for bag making operations looking to minimize operating costs without sacrificing quality.
Availability:
Quantity:

Model

RKHF-330F

RKHF-450F

RKHF-450BF

RKHF-550F

Paper bag cutting length (C)

260-530mm(without handle)

260-530mm(without handle)

360-800mm(without handle)

360-800mm(without handle)

260-430mm(with handle)

260-430mm(with handle)

360-700mm(with handle)

360-700mm(with handle)

Paper bag width (W)

130-330mm(without handle)

180-450mm(without handle)

220-450mm(without handle)

220-550mm(without handle)

220-330mm(with handle)

250-450mm(with handle)

250-450mm(with handle)

250-550mm(with handle)

Paper bag bottom width (H)

70-180mm

90-180mm

90-180mm

100-250mm

Paper roll width

430-1050mm

570-1290mm

670-1430mm

670-1630mm

Paper thickness

60-160g/m2(without handle)

60-160g/m2(without handle)

60-160g/m2(without handle)

60-160g/m2(without handle)

80-160g/m2(with handle)

80-160g/m2(with handle)

90-160g/m2(with handle)

90-160g/m2(with handle)

Max. speed

120-200pcs/min

120-200pcs/min

120-200pcs/min

120-200pcs/min

Flat handle width

12mm

12mm/15mm(choose one size)

12mm/15mm(choose one size)

12/15mm(choose one size)

Handle patch length

152mm

190mm

190mm

190mm

Handle patch width

45mm

50mm

50mm

50mm

Handle Height(with sheet)

140mm

140mm

140mm

140mm

Power

25KW

25KW

30KW

30KW

Dimension

L12000*W5400*H2600mm

L12000*W5600*H2600mm

L13500*W5700*H2600mm

L13500*W5700*H2600mm



The retail reel feeding paper bag machine

A paper bag machine is a device that automatically forms, fills, and seals paper bags. Paper bag machines are used to package a variety of products, such as food, chemicals, and pharmaceuticals.

Paper bag machines typically consist of a feeder, an forming head, a filling device, and a sealing device. The forming head forms the bottom of the paper bag from a flat sheet of paper. The filling device fills the paper bag with the product to be packaged. The sealing device seals the top of the paper bag.

retail reel feeding paper bag machine can be either fully automatic or semi-automatic. Fully automatic paper bag machines can produce up to 2000 bags per hour. Semi-automatic paper bag machines are slower, but more versatile, and can produce up to 500 bags per hour.


The Function of the retail reel feeding paper bag machine

When it comes to creating paper bags, a retail reel feeding paper bag machine is an essential piece of equipment. This type of machine is responsible for creating flat bottomed bags that are then sealed at the side seam. The process begins with a roll of paper being fed into the machine. The paper is then cut to size and creased before being formed into a tube. Once the tube has been formed, the bottom is sealed and the sides are glued together. Finally, the top of the bag is rolled over and glued shut.


Why do we need to use the retail reel feeding paper bag machine?

The retail reel feeding paper bag machine is a versatile machine that can be used to make paper bags of various sizes and shapes. It is easy to operate and can be used by anyone, regardless of their level of experience. With its wide range of features, the retail reel feeding paper bag machine is an essential piece of equipment for any business that needs to produce paper bags on a regular basis.



Previous:
Next:

FAQ

Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, v bottom paper bag machine, square bottom paper bag machine and related auxiliary equipment, etc. We have many professional engineers who have more than twenty years experience in the packaging equipment manufacturing industry.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.
  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.
  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
  • Q What information should I let you know if I want to get a quotation?

    A First, Paper raw material: Reel paper or Sheet Paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
