Availability: | |
---|---|
Quantity: | |

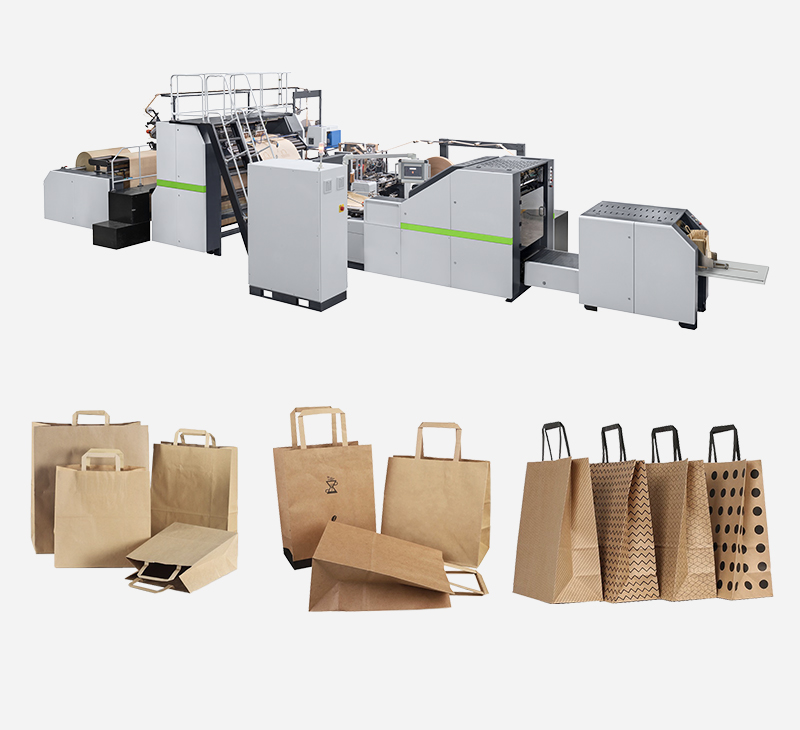

Model | RKHF-330F | RKHF-450F | RKHF-450BF | RKHF-550F |
Paper bag cutting length (C) | 260-530mm(without handle) | 260-530mm(without handle) | 360-800mm(without handle) | 360-800mm(without handle) |
260-430mm(with handle) | 260-430mm(with handle) | 360-700mm(with handle) | 360-700mm(with handle) | |
Paper bag width (W) | 130-330mm(without handle) | 180-450mm(without handle) | 220-450mm(without handle) | 220-550mm |
220-330mm(with handle) | 250-450mm(with handle) | 250-450mm(with handle) | ||
Paper bag bottom width (H) | 70-180mm | 90-180mm | 90-180mm | 100-250mm |
Paper roll width | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Paper thickness | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) |
80-160g/m2(with handle) | 80-160g/m2(with handle) | 90-160g/m2(with handle) | 90-160g/m2(with handle) | |
Max. speed | 120-200pcs/min | 120-200pcs/min | 120-200pcs/min | 120-200pcs/min |
Flat handle width | 12mm | 12mm/15mm(choose one size) | 12mm/15mm(choose one size) | 12/15mm(choose one size) |
Handle patch length | 152mm | 190mm | 190mm | 190mm |
Handle patch width | 45mm | 50mm | 50mm | 50mm |
Handle Height(with sheet) | 140mm | 140mm | 140mm | 140mm |
Power | 25KW | 25KW | 30KW | 30KW |
Dimension | L12000*W5400*H2600mm | L12000*W5600*H2600mm | L13500*W5700*H2600mm | L13500*W5700*H2600mm |
The working principle of the paper bag machine is very simple
The working principle of the paper bag machine is very simple. It uses a rotary die to cut and form the paper bags. The rotary die is mounted on a shaft that is driven by a motor. The paper is fed into the machine from a roll. The motor turns the shaft, which cuts the paper into the desired shape and size.
It uses a roll of paper that is fed into the machine
Rolled paper is fed into the machine where it is cut to size and then sealed at the bottom. A roll of paper is placed onto the machine and fed through. The machine will cut the paper to size and seal the bottom.
The machine then folds the paper and creates a bag
The paper bag machine then folds the paper and creates a bag. This is done by first folding the paper in half, then creasing it along the fold. Next, the machine cuts a V-shaped notch out of the top of the paper, which will be used to create the handles of the bag. Finally, the machine folds the bottom of the paper up and over the top of the paper, creating a finished bag.
The bags created by the machine are then sent to a conveyor belt where they are taken to be
The bags created by the machine are then sent to a conveyor belt where they are taken to be packaged. The conveyor belt moves the bags through a series of packaging stations. At each station, a different type of packaging material is added to the bag.
Model | RKHF-330F | RKHF-450F | RKHF-450BF | RKHF-550F |
Paper bag cutting length (C) | 260-530mm(without handle) | 260-530mm(without handle) | 360-800mm(without handle) | 360-800mm(without handle) |
260-430mm(with handle) | 260-430mm(with handle) | 360-700mm(with handle) | 360-700mm(with handle) | |
Paper bag width (W) | 130-330mm(without handle) | 180-450mm(without handle) | 220-450mm(without handle) | 220-550mm |
220-330mm(with handle) | 250-450mm(with handle) | 250-450mm(with handle) | ||
Paper bag bottom width (H) | 70-180mm | 90-180mm | 90-180mm | 100-250mm |
Paper roll width | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
Paper thickness | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) | 60-160g/m2(without handle) |
80-160g/m2(with handle) | 80-160g/m2(with handle) | 90-160g/m2(with handle) | 90-160g/m2(with handle) | |
Max. speed | 120-200pcs/min | 120-200pcs/min | 120-200pcs/min | 120-200pcs/min |
Flat handle width | 12mm | 12mm/15mm(choose one size) | 12mm/15mm(choose one size) | 12/15mm(choose one size) |
Handle patch length | 152mm | 190mm | 190mm | 190mm |
Handle patch width | 45mm | 50mm | 50mm | 50mm |
Handle Height(with sheet) | 140mm | 140mm | 140mm | 140mm |
Power | 25KW | 25KW | 30KW | 30KW |
Dimension | L12000*W5400*H2600mm | L12000*W5600*H2600mm | L13500*W5700*H2600mm | L13500*W5700*H2600mm |
The working principle of the paper bag machine is very simple
The working principle of the paper bag machine is very simple. It uses a rotary die to cut and form the paper bags. The rotary die is mounted on a shaft that is driven by a motor. The paper is fed into the machine from a roll. The motor turns the shaft, which cuts the paper into the desired shape and size.
It uses a roll of paper that is fed into the machine
Rolled paper is fed into the machine where it is cut to size and then sealed at the bottom. A roll of paper is placed onto the machine and fed through. The machine will cut the paper to size and seal the bottom.
The machine then folds the paper and creates a bag
The paper bag machine then folds the paper and creates a bag. This is done by first folding the paper in half, then creasing it along the fold. Next, the machine cuts a V-shaped notch out of the top of the paper, which will be used to create the handles of the bag. Finally, the machine folds the bottom of the paper up and over the top of the paper, creating a finished bag.
The bags created by the machine are then sent to a conveyor belt where they are taken to be
The bags created by the machine are then sent to a conveyor belt where they are taken to be packaged. The conveyor belt moves the bags through a series of packaging stations. At each station, a different type of packaging material is added to the bag.
