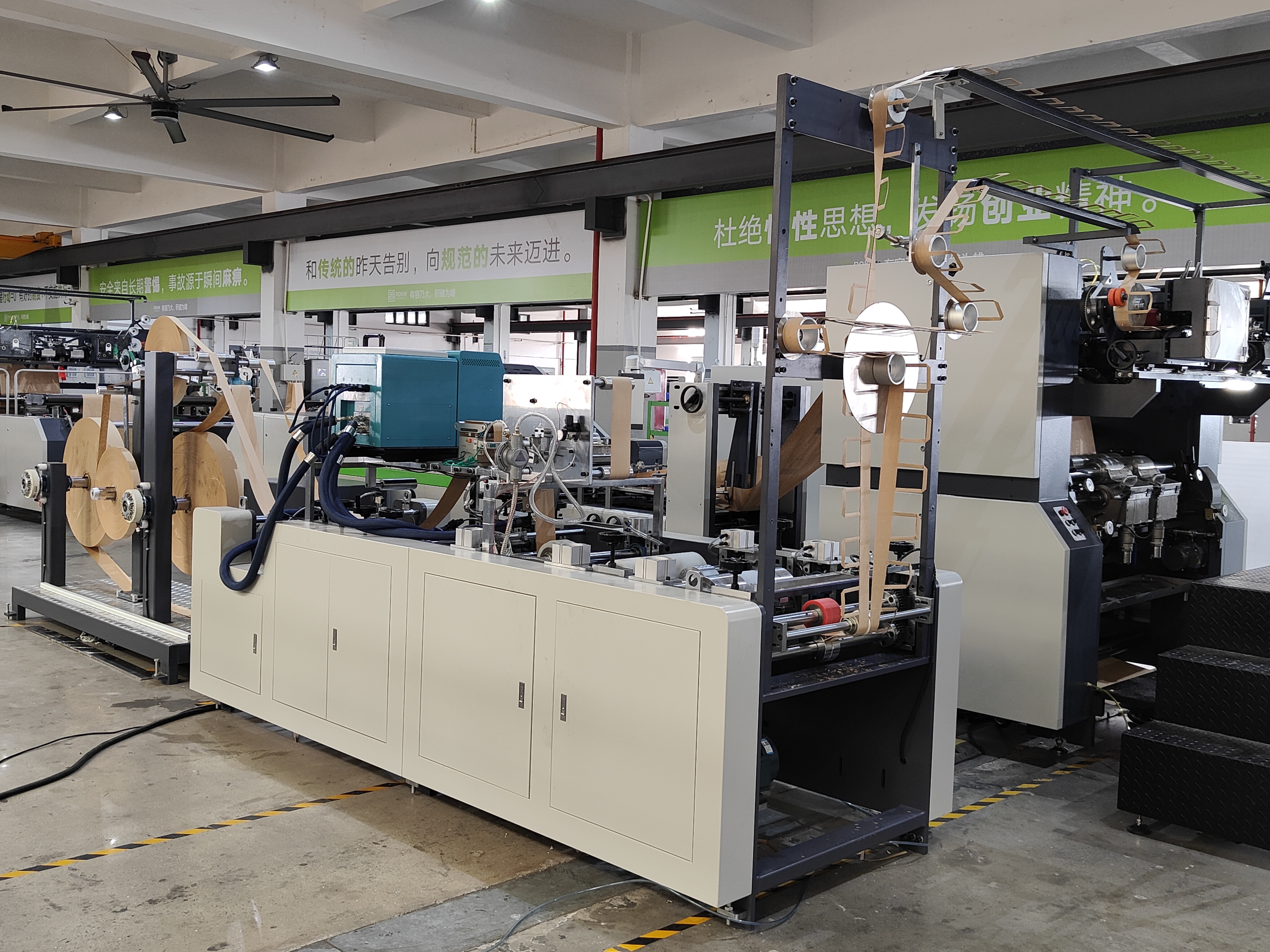

Roll Fed Colored Paper Bag Machine

This bag making machine is designed for the automatic production of paper shopping bags with twisted handles, equipped with 4-color inline printing machine, which is an ideal choice for bag making operations looking to minimize operating costs without sacrificing quality.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Model

RKHF-330F

RKHF-450F

RKHF-450BF

RKHF-550F

Paper bag cutting length (C)

260-530mm(without handle)

260-530mm(without handle)

360-800mm(without handle)

360-800mm(without handle)

260-430mm(with handle)

260-430mm(with handle)

360-700mm(with handle)

360-700mm(with handle)

Paper bag width (W)

130-330mm(without handle)

180-450mm(without handle)

220-450mm(without handle)

220-550mm(without handle)

220-330mm(with handle)

250-450mm(with handle)

250-450mm(with handle)

250-550mm(with handle)

Paper bag bottom width (H)

70-180mm

70-180mm

100-250mm

100-250mm

Paper roll width

430-1050mm

570-1290mm

670-1430mm

670-1630mm

Paper thickness

60-160g/m2(without handle)

60-160g/m2(without handle)

60-160g/m2(without handle)

80-160g/m2(with handle)

80-160g/m2(with handle)

80-160g/m2(with handle)

90-160g/m2(with handle)

90-160g/m2(without handle)

Max. speed

60-150pcs/min

60-150pcs/min

30-120pcs/min

30-100pcs/min

Flat handle width

12mm

12mm/15mm(choose one size)

12mm/15mm(choose one size)

12/15mm(choose one size)

Handle patch length

152mm

152mm

152mm

190mm

Handle patch width

45mm

50mm

50mm

50mm

Handle Height(with sheet)

140mm

140mm

140mm

140mm

Power

25KW

25KW

30KW

30KW

Dimension

L12000*W5400*H2600mm

L12000*W5400*H2600mm

L13500*W5700*H2600mm

L13500*W5700*H2600mm


A Roll Fed Colored Paper Bag Machine is a specialized machine designed to produce durable and high-quality colored paper bags. This machine uses paper rolls of different colors as the raw material and can produce various types of bags used in the food, retail, and cosmetic industries.

The machine consists of several components, including a feeding unit, printing unit, cutting unit, pasting unit, and delivery unit. The feeding unit feeds the paper roll into the machine, where it is printed with different colors using the printing unit. The machine can print different designs and logos, contributing to the appearance and aesthetic value of the bags produced.

After printing, the paper passes through the cutting unit, where it is cut to the required size and shape. The pasting unit then applies adhesive to the edges of the paper, which eventually form the sides and bottom of the bag. Finally, the delivery unit assembles the different pieces of the bag and delivers it out of the machine.

The use of color in the production of bags has several benefits. It enhances the visual appeal of the bags and helps businesses differentiate their brand and products from competitors. Additionally, the colored paper used in the production of these bags is biodegradable, eco-friendly, and non-toxic, making them a sustainable choice for businesses and consumers.

In conclusion, Roll Fed Colored Paper Bag Machines are highly specialized equipment that produces high-quality and durable colored paper bags. The machines are efficient, allowing manufacturers to produce bags in large quantities while maintaining their quality. The use of colored paper offers numerous benefits, including visual appeal and sustainability, making them a popular choice for businesses and consumers alike.
