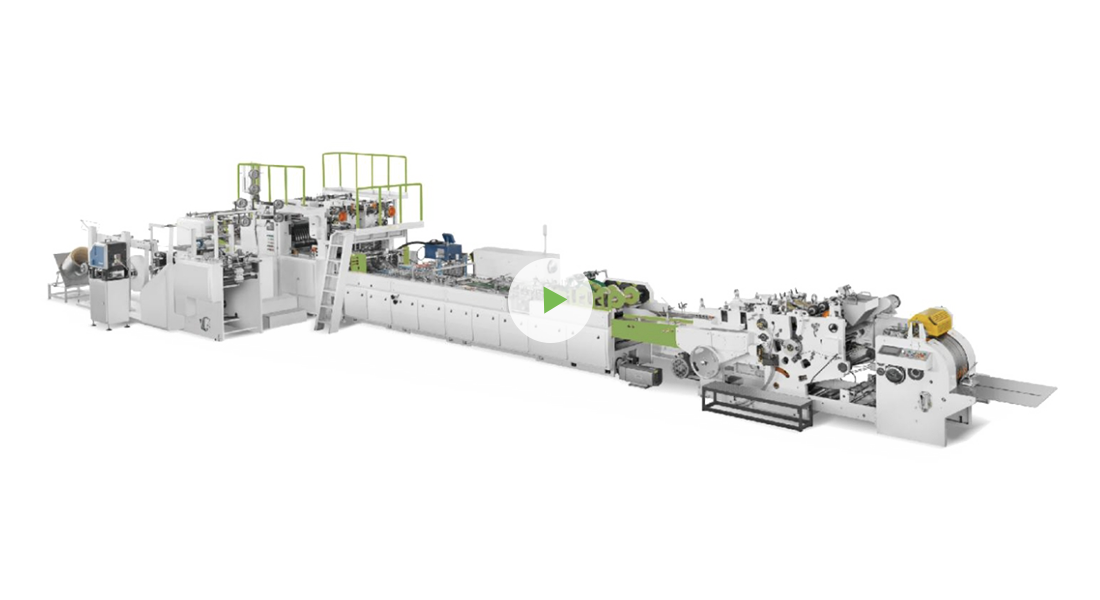

Sheet Feeding Paper Bag Machine

Automatic sheet-feeding paper bag making machine is suiable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material, can one-time finish; paper feeding, positioning, die-cutting, reinforced paper gluing, reniforced paper pasting, top folding, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output, The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process.

Sheet Feeding Paper Bag Machine

Automatic sheet-feeding paper bag making machine is suiable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material, can one-time finish; paper feeding, positioning, die-cutting, reinforced paper gluing, reniforced paper pasting, top folding, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output, The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system. with characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.

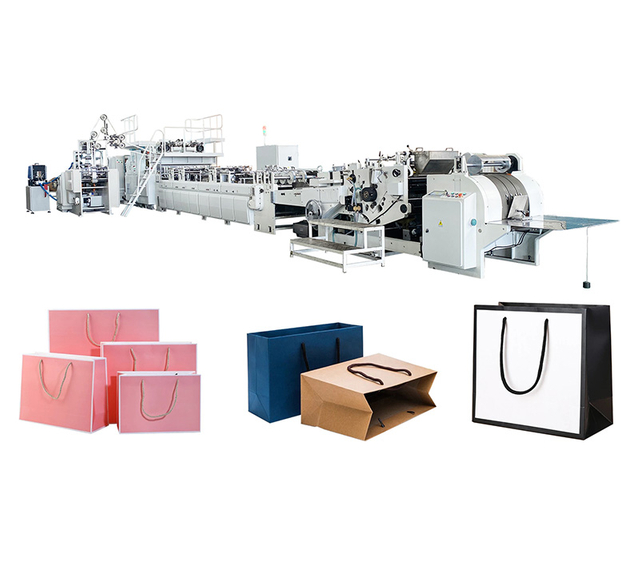

Sample

Sheet Feeding Paper Bag Machine Detail

  •
  •
    Model RKDZ-220T RKDZ-350T RKDZ-450T
    Paper bag width 130-250mm 180-350mm 220-450mm
    Paper width 490-770mm 600-1040mm 600-1240mm
    Paper length 260-450mm 340-600mm 350-600mm
    Bag bottom width 60-130mm 80-150mm 90-170mm
    Paper thickness 100-190g/m2 120-200g/m2 120-220g/m2
    Bag mouth fold width 40-50mm 40-60mm 40-60mm
    Max. speed 40-75pcs/min 40-75pcs/min 40-75pcs/min
    Twisted handle diameter ø4-6mm ø4-6mm ø4-6mm
    Handle patch length 114mm 152mm 188mm
    Handle patch width 40-50mm 40-55mm 40-55mm
    Handle Height(with sheet) 160-185mm 170-185mm 170-195mm
    Patch paper thickness 100-140g/m2 120-150g/m2 120-180g/m2
    Patch paper roll width 80-100mm 80-110mm 80-110mm
    Power 20KW, 380V/50HZ 22KW, 380V/50HZ 22KW, 380V/50HZ
    Weight 18000KGS 20000KGS 22000KW
    Dimension L14000*W5000*H3100mm L15000*W5500*H3100mm L16000*W6000*H3100mm
  •

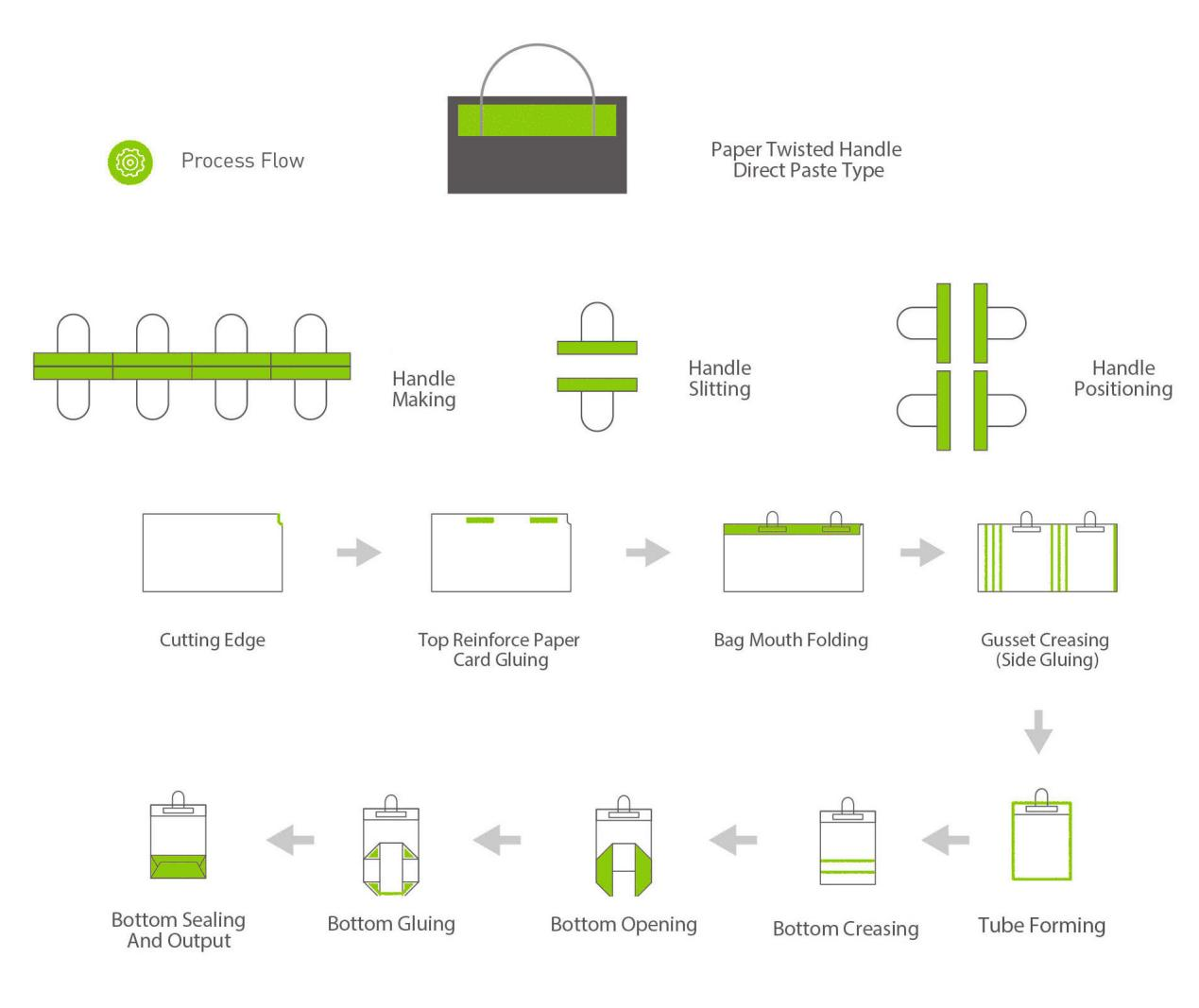

    paper bag making process
  •
    Fully automatic sheet feeding paper bag machine adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags in one time. The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output. Three bag types are all available on this machine. Based on the traditional machine mechanical handle/patch cutting unit, this machine updated to servo cutting system which has a much more compact structure. Shorter setup time, safer working condition, bigger and convenient operation space are all its advantages.
  •

  •


Related Machines

FAQ

Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, v bottom paper bag machine, square bottom paper bag machine and related auxiliary equipment, etc. We have many professional engineers who have more than twenty years experience in the packaging equipment manufacturing industry.

  • Q Are you manufacturer or trading company?

    A We are the manufacturer and have over 200 workers.
  • Q Where is your factory located? May I have a visit?

    A Warmly welcome! Our factory is located in Wenzhou city.
  • Q How is the quality of your machine?

    A We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
  • Q What information should I let you know if I want to get a quotation?

    A First, Paper raw material: Reel paper or Sheet Paper.
    Second, sizes of the paper bag, thickness of paper.
    Send sample bag picture if available.
    Then we will recommend the right machine to you!
