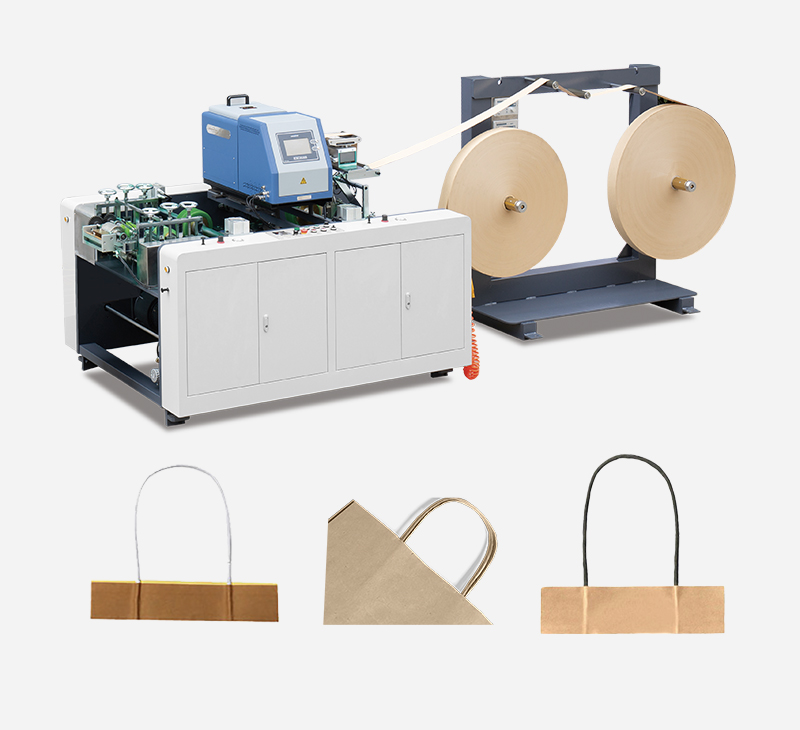

Paper bag handle making machine series is applied to produce many types of paper bags with round handles, such as food paper bag, shopping bags and so on.
Main Technical Parameter
Model | RKH-S190 | |
Handle diameter | Dia3-4mm |
|
Handle distance (D) | 75/95mm | |
Handle height (H) | 100mm | |
Paper sheet length (L) | 152/190mm | |
Paper sheet width (W) | 30/40mm | |
Machine speed | 10000 pcs/hour | |
Paper roller inner side diameter | Dia76mm | |
Max. Paper roller outside diameter | Dia1000mm | |
Machine supply | 380V, 50Hz, three phase, four wires | |
Power | 7.8 KW | |
Weight | 1500 KGS | |
Dimension | L4000*W1300*H1500mm |
Finished product samples
Round handle dimension
.
